Recalling a greybox preset in UXA Installation Amplifiers

EAW Greybox presets provide optimized settings for EAW loudspeakers. Each amplifier can store a library of speaker presets. Resolution comes with a list of the most recent preset revisions.

To load an EAW Greybox into a UXA installation amplifier, enter the set up by clicking edit on the amp in Resolution and then click on the output tab then choose Speaker Preset.

EAW Greybox presets provide optimized settings for EAW loudspeakers. In each greybox is built in technologies such as focusing, or FIR Filters, Dyno – dynamic optimization or Dynamic EQ, and beamwidth matched crossovers.

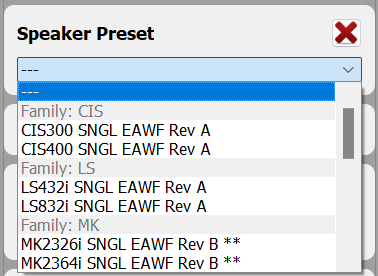

Greybox presets can be selected from the drop-down list. Preset names ending with “**” are defined on the amplifier and not in Resolution. This does not prevent them from being selected when connected to the amplifier, but they will not be available as a selection when the amplifier is offline.
