NT208L Rigging System

The NT208L rigging system has been engineered to provide a fast, intuitive, and highly reliable
deployment experience that allows users to configure and deploy arrays with minimal effort and
maxium precision. A key feature of the system is the ability to define all inter-cabinet angles while
the enclosures remain on their transport cart, allowing complete array configuration at ground level
prior to lifting. This approach streamlines deployment, enhances safety, and improves overall system accuracy.

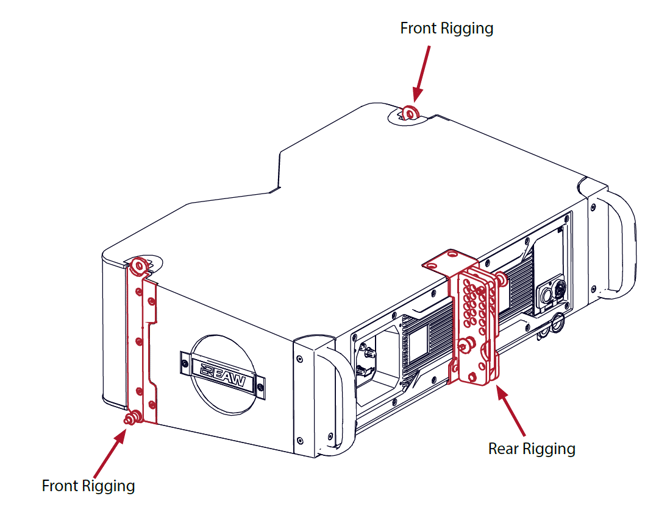

Each NT208L cabinet is equipped with a proprietary three-point rigging system, comprised of two
front rigging points and one rear rigging point.

There are two main use cases for the NT208L loudspeaker. Each case requires the user to set a
specified splay angle between two cabinets using the rear rigging.

1. FLOWN CABINETS: Insert one pin in the hole on the chosen angle. Note that this type of
configuration during the assembly allows changing the chosen angle simply by moving the
respective pin (with the rear link inserted). Once the cabinet is lifted using the motor, lock
the cabinets by inserting the second pin into the respective "ANGLE LOCK" hole.

2. STACKED CABINETS: Once the pin is inserted into the hole of the chosen angle, lift the top
cabinet as far as the rear link allows. At this point, insert the second pin into the respective
“ANGLE LOCK” hole and release the top cabinet . By doing this, the top cabinet is completely
rested on the two pins in the rear.

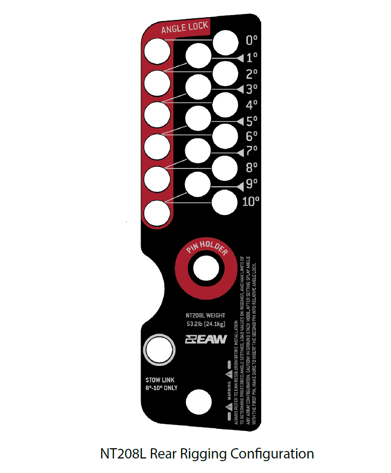

Note: To ensure that the correct angle lock hole is selected, follow the path line from the splay hole
to find its respective angle lock position. All the angle lock holes are enclosed inside the red loop as
shown below.

Repeat the process for each array element that is added.

"STOW LINK 8°-10° ONLY" - When the array is suspended and the bottom cabinet is set to angles
8°-10°, use this hole to securely store the unused link of the cabinet.
