Using OAA (Online Array Assistant) with Newport Series Products

All Newport line arrays are supported by this browser-based tool that calculates precise
pick-points, splay angles, and rear-panel switch settings to ensure optimized coverage on
the first hang. Utilizing the same technology and data built into Resolution 2 software,
this predicts deployment configurations to save time during the commissioning or tuning
process.

OAA is based at https://eaw.com/oaa/

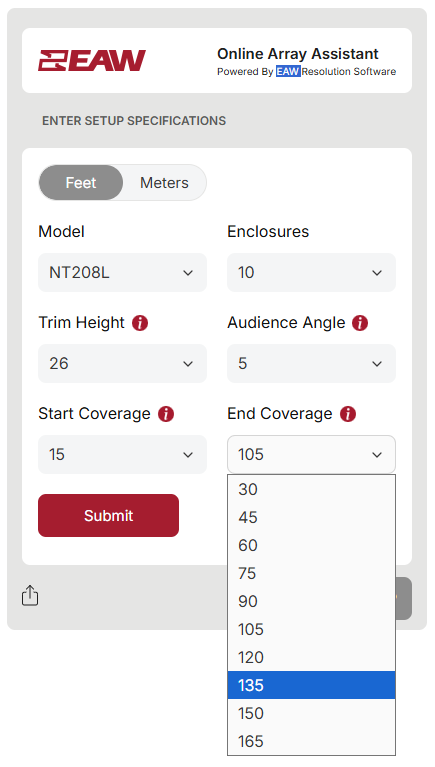

A window will appear prompting for setup specifications. Select model, number of
enclosures, trim height (from the top of the array), audience angle (rake/incline), and start/
end coverage based on the system and venue at hand.

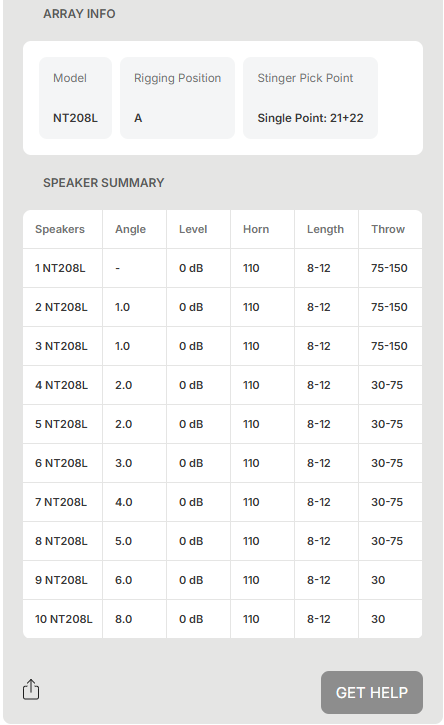

With all parameters entered, select Submit. The output will be recommendations for splay
angles, pick points, and array configuration options depending on the model.

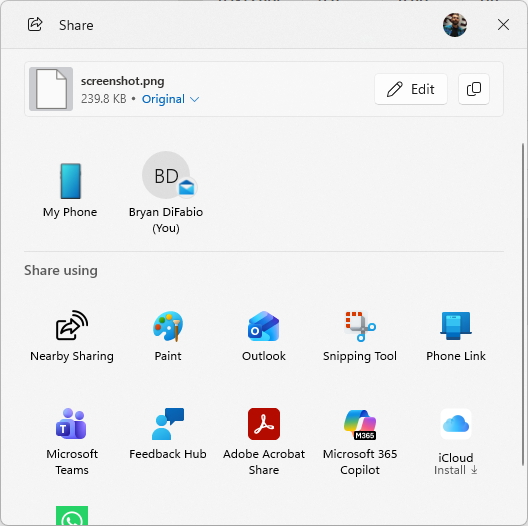

If the information from OAA needs to be shared, there are various options to do so by
clicking the share button.

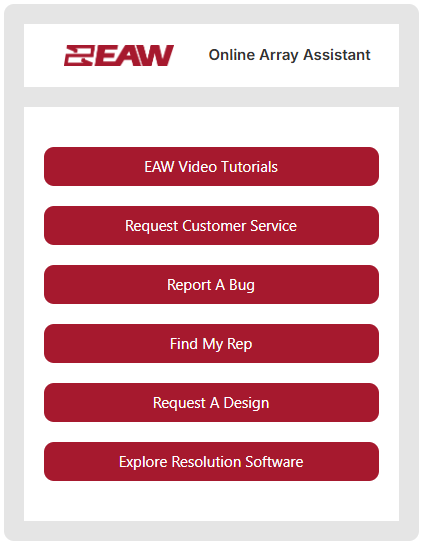

Selecting the GET HELP button at any time provides valuable resources links to tutorial
videos and contact information.
